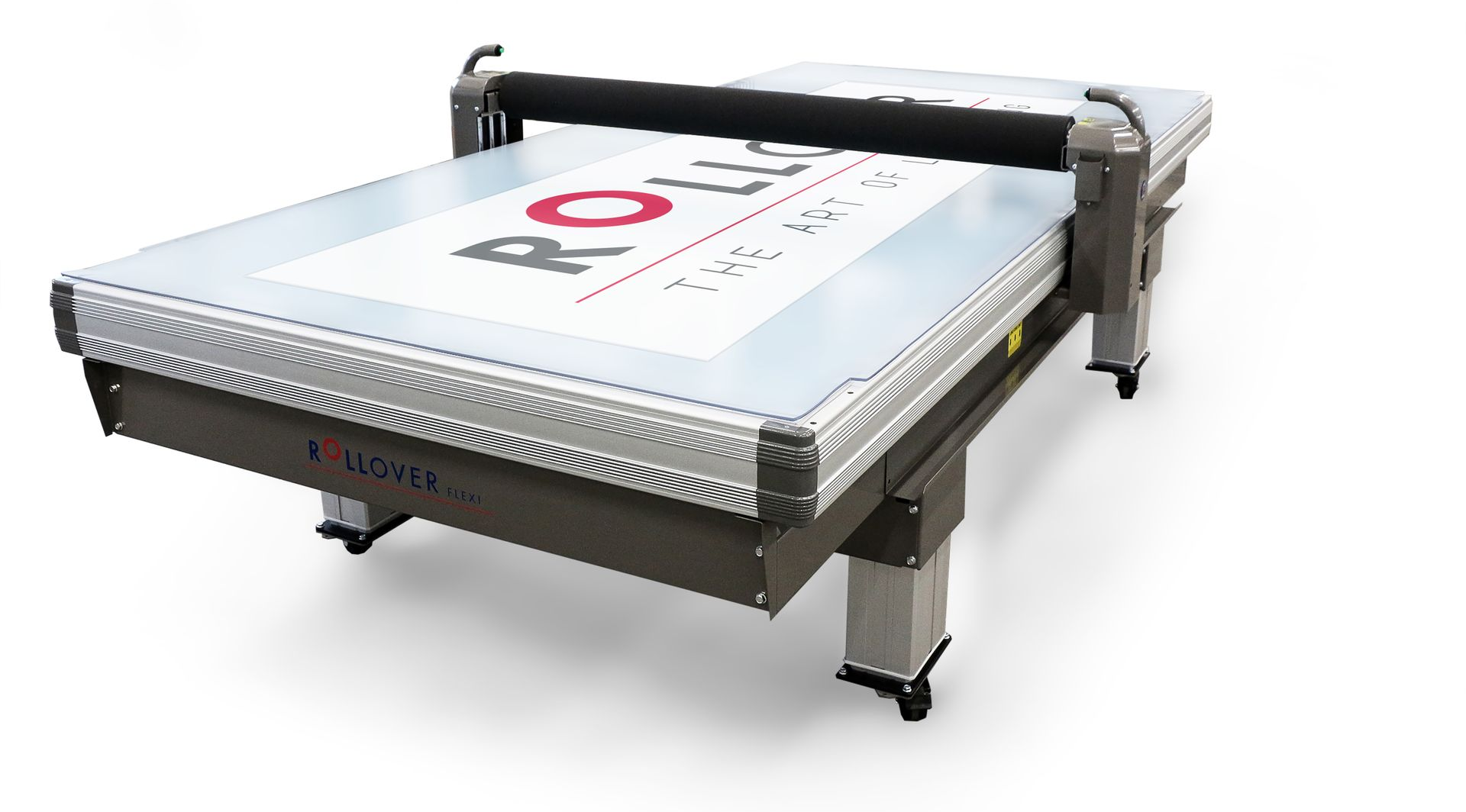

Rollover Flexi
Rollover Flexi
THE FLEXIBLE OPTIONRollover Flexi is the new, flexible addition to the Rollover range. With all the essential qualities of the existing line of Flatbed Applicators, this unit also offers quick dismantling to facilitate entering premises with difficult access.The Flexi model arrives fully assembled, but is constructed for convenient and quick dismantling in three main sections: The sliding arms/ roller gantry - The glass bed and supporting frame - The leg sectionThese elements can be individually transported into premises with difficult access. This is done either manually or by using the specially developed transport tool.
DIFFICULT ACCESS IS NO LONGER A PROBLEM!
Key Features
One Button Operation
Ergonomically shaped and inward facing
handles, means the roller can
be operated easily over the table top
both in a raised and lowered position,
with one hand
Rounded Housings
No sharp edges & a protected
starter switch, gives unobstructed
access to the work surface
Free to view Roller
Easy access to work bench
Side trays for tools
for storing brackets and roll holders
and smaller tools
Self Healing Cutting Mat
5mm Clear Phalthae Free
Tool Pockets
Tools can be stored in conveniently
placed pockets on each housing
One Piece Glass Top
10 mm One piece glass top
Castors for easy moving
Easily move the Rollover around the workshop , NO levelling required

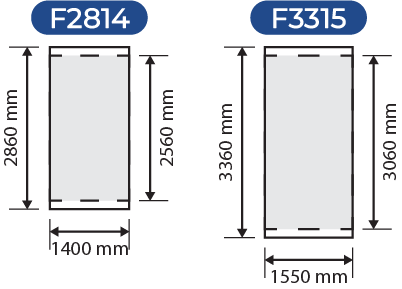

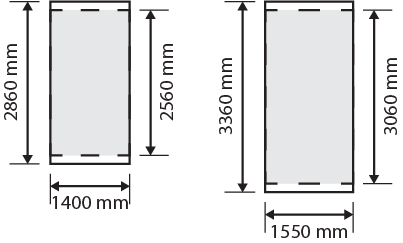

| Model size in mm | Glassbed working area in mm | Working area of roller in mm | Roller Diameter in mm | Approx Weight in KG | Illumation, LED |
|---|---|---|---|---|---|
| 2860 x 1400 | 1400 x 2860 | 1400 x 2560 | 130 | 380 | 115 W |
| 3360 x 1550 | 1550 x 3360 | 1550 x 3060 | 130 | 450 | 231 W |
| 3360 x1550 EHA | 1550 x 3360 | 1550 x 3060 | 130 | 500 | 231W |
| Standard Model Max Thickness of substrate | 65 mm |
|---|---|
| Work height glass | 900 mm |
| Power Supply | 230v /50Hz/24v |
| EHA Model Max Thickness of substrate | 65 mm |
|---|---|
| Work height glass | 900 mm to 1200 mm |
| Power Supply | 230v /50Hz/24v |
